Quickstart

This page is the fastest path to run Joulie. For conceptual context first, read Core Concepts.

Prerequisites

• Kubernetes cluster with worker nodes
• Node Feature Discovery (NFD) deployed
• Optional for real enforcement: nodes exposing writable power interfaces
  • RAPL power limit files, or
  • cpufreq sysfs interfaces

Install from release (recommended)

Install directly from OCI chart release:

helm upgrade --install joulie oci://registry.cern.ch/mbunino/joulie/joulie \
  --version <version> \
  -n joulie-system \
  --create-namespace \
  -f values/joulie.yaml

Label nodes managed by the operator

Important: Joulie will only target nodes with a specific label, and ignore all the others. By default, install does not auto-select nodes. Default expected selector value is:

• joulie.io/managed=true (operator env NODE_SELECTOR)

So you must label target worker nodes, for example:

kubectl label node <node-a> joulie.io/managed=true --overwrite
kubectl label node <node-b> joulie.io/managed=true --overwrite

If this is missing, operator logs will show no eligible nodes matched selector. By default, the agent DaemonSet uses the same selector scope (joulie.io/managed=true), so unlabeled nodes will not run agent pods.

Install from source (when developing)

If you changed source code, from repo root:

make build-push TAG=<tag>
make install TAG=<tag>

This pushes:

• registry.cern.ch/mbunino/joulie/joulie-agent:<tag>
• registry.cern.ch/mbunino/joulie/joulie-operator:<tag>
• registry.cern.ch/mbunino/joulie/joulie-scheduler:<tag>

You can also do build+push+install in one command:

make build-push-install TAG=<tag>

Run make help to see all available targets (including rollout, uninstall, simulator-install, and more).

Install CRDs + components (source workflow)

If images for TAG are already in the registry (no source changes), run:

make install TAG=<tag>

This performs a Helm install/upgrade (charts/joulie) and sets both images to the requested tag. Default values come from:

• values/joulie.yaml

You can override with:

make install TAG=<tag> HELM_VALUES=<path-to-values.yaml>

Node selection behavior is the same as release install:

• operator expects joulie.io/managed=true by default
• label target nodes before verifying reconciliation

Joulie will only target nodes with that specific label.

To remove Joulie components and CRD:

make uninstall

Update to a new image tag later

make rollout TAG=<new-tag>

Joulie operator and agents

Joulie control is a desired-state loop:

• agent discovers per-node hardware and publishes NodeHardware,
• operator resolves hardware/inventory and decides per-node target state,
• operator writes that desired state into NodeTwin.spec,
• node labels (joulie.io/power-profile) expose current supply to the scheduler,
• agent enforces node-local controls from desired state and telemetry/control profile.

Meaning of the key node labels:

• joulie.io/managed=true
  • node is in Joulie operator scope (eligible for policy decisions)
• joulie.io/power-profile=performance
  • node currently offers high-performance supply
• joulie.io/power-profile=eco
  • node currently offers low-power supply (resources are throttled according to the selected policy)

Read the architecture path after this quickstart:

1. CRD and Policy Model
2. Joulie Operator
3. Input Telemetry and Actuation Interfaces

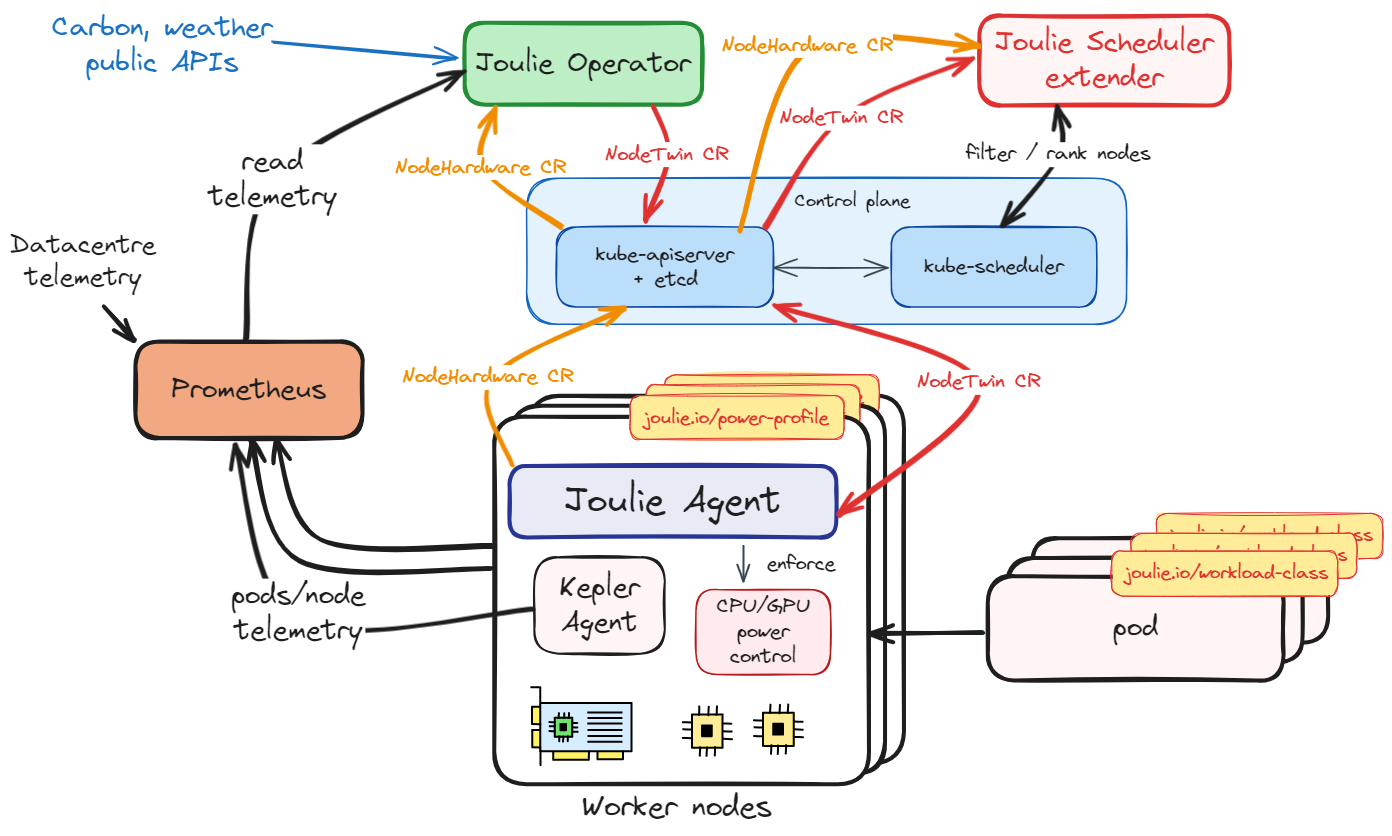

Architecture overview:

Central operator mode

The operator continuously writes NodeTwin.spec assignments from the active policy (for example static partition or queue-aware), mapping desired states to node profiles (performance/eco).

Configuration details:

• CRD and Policy Model
• Operator
• Optional runnable manifest walkthrough:
  • Operator Configuration Example

Verify:

kubectl get nodehardwares
kubectl get nodetwins
kubectl -n joulie-system logs deploy/joulie-operator --tail=100
kubectl -n joulie-system logs -l app.kubernetes.io/name=joulie-agent --tail=100

Look for:

• NodeHardware objects appearing for managed nodes,
• operator logs mentioning inventory-aware planning or desired-state assignment,
• agent logs containing desired-state source and enforcement/fallback actions.

Also verify installed images:

kubectl -n joulie-system get pods \
  -o custom-columns=NAME:.metadata.name,IMAGE:.spec.containers[0].image,IMAGEID:.status.containerStatuses[0].imageID

If operator logs show no eligible nodes matched selector, verify node labels:

kubectl get nodes --show-labels | grep 'joulie.io/managed=true'

Workload and Power Simulator

The simulator has its own Helm chart, published alongside the main Joulie chart:

helm upgrade --install joulie-simulator oci://registry.cern.ch/mbunino/joulie/joulie-sim \
  --version <version> \
  -n joulie-sim-demo \
  --create-namespace \
  --set image.tag=<version>

Or from source: make simulator-install TAG=<version>

For fake-node workload + power simulation (real scheduler, fake KWOK nodes, real operator, agent pool mode), see:

• Simulator Overview
• Workload Simulator
• Power Simulator
• Hardware Modeling and Physical Power Model
• KWOK Simulator Example

kubectl plugin

The kubectl-joulie plugin adds kubectl joulie status for inspecting Joulie cluster energy state.

Install from release (Harbor/OCI)

Download the pre-built binary for your platform from the CERN OCI registry using ORAS:

# Pick your platform: linux-amd64, linux-arm64, darwin-amd64, darwin-arm64
PLATFORM="linux-amd64"
VERSION="<version>"

oras pull "registry.cern.ch/mbunino/joulie/kubectl-joulie:${VERSION}-${PLATFORM}"
chmod +x "kubectl-joulie-${PLATFORM}"
# User-local install (no sudo required, ensure ~/.local/bin is in your PATH)
install "kubectl-joulie-${PLATFORM}" ~/.local/bin/kubectl-joulie

# Or system-wide install (requires sudo)
sudo install "kubectl-joulie-${PLATFORM}" /usr/local/bin/kubectl-joulie

Alternatively, download from the GitHub release assets:

PLATFORM="linux-amd64"
VERSION="<version>"

curl -sLO "https://github.com/joulie-k8s/Joulie/releases/download/v${VERSION}/kubectl-joulie-${PLATFORM}"
chmod +x "kubectl-joulie-${PLATFORM}"

# User-local install (no sudo required, ensure ~/.local/bin is in your PATH)
install "kubectl-joulie-${PLATFORM}" ~/.local/bin/kubectl-joulie

# Or system-wide install (requires sudo)
sudo install "kubectl-joulie-${PLATFORM}" /usr/local/bin/kubectl-joulie

Install from source

make kubectl-plugin-install

Usage

kubectl joulie status      # Show energy state of all Joulie-managed nodes

Next step

Continue with:

1. Pod Compatibility for Joulie
2. Agent Runtime Modes
